3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application

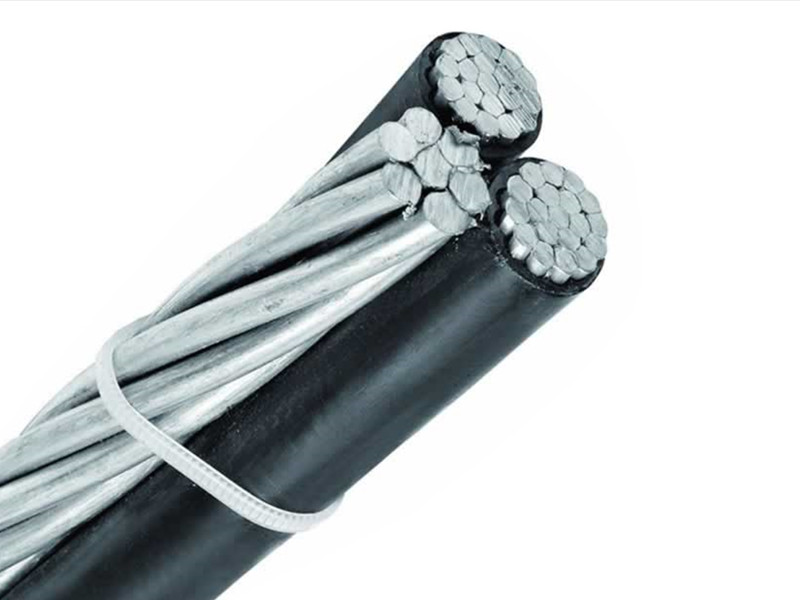

3/0-3/0-3/0 Melita Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

Also Known As:
3/0-3/0-3/0 melita triplex aluminum wire, 3/0-3/0-3/0 melita triplex overhead wire, 3/0-3/0-3/0 melita aluminum triplex, 3/0-3/0-3/0 melita triplex conductor, 3/0-3/0-3/0 melita overhead aluminum wire, 3/0-3/0-3/0 melita aluminium overhead cables, 3/0-3/0-3/0 melita overhead service drop conductor

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts

CONSTRUCTION :

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger)Conductor	Bare AAC messenger. Optional constructions include a messenger of ACSR or 6201 alloy.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Technical Data

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Parameter

Code Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000ft.(Ibs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Insul. Thick. (mils)	Size (kcmil)	Stranding	Rated Strength (Ibs.)	XLP	POLY	XLP	POLY
AAC NEUTRAL-MESSENGER
Patella	6	7	45	6	7	563	103	103	85	70
Oyster	4	7	45	4	7	881	154	154	115	90
Clam	2	7	45	2	7	1350	233	233	150	120
Murex	1/0	7	60	1/0	7	1990	374	374	205	160
Purpura	1/0	9	60	1/0	7	1990	368	368	205	160
Nassa	2/0	7	60	2/0	7	2510	462	462	235	185
Melita	3/0	17	60	3/0	19	3310	562	562	275	215
Portunus	4/0	18	60	4/0	19	4020	696	696	315	245
Nannynose	336.4	19	80	336.4	19	6146	1118	1118	420	325
