2 Cores XLPE Insulated PVC Sheathed Aluminum Cable Unarmoured 0.6/1kV

Cable Aluminum AL/XLPE/PVC 2 Cores

Conductor: Aluminum

Insulation: XLPE X-90

Sheath: PVC

Voltage: 0.6/1kV

Number of cores: 2 Cores

Package : Export wooden drum & iron wooden drum or as customer require

Email: manager@hdcable.com.cn

Send message Whatsapp

Share with:

APPLICATION STANDARDS CONSTRUCTION PARAMETER

Cable Application

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS :

Cable Standards

IEC 60228; IEC 60502-1

CONSTRUCTION :

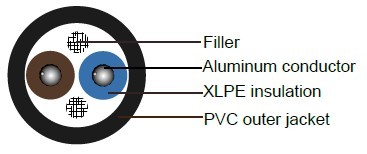

Cable Construction

Conductor
Aluminum conductor, circular stranded, conforming to the applicable requirements of IEC 60228.

Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.

Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC60502-1.

PARAMETER :

Cable Parameter

0.6/1kV-2 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
2X10	0.7	1.8	15.4	200	3.08	58	78
2X16	0.7	1.8	17.4	270	1.91	75	100
2X25	0.9	1.8	20.5	380	1.20	100	130
2X35	0.9	1.8	22.5	480	0.868	120	155
2X50	1.0	1.8	20.3	490	0.641	150	185
2X70	1.1	1.8	23.3	630	0.443	190	225
2X95	1.1	1.9	26.2	820	0.320	235	275
2X120	1.2	2.0	29.4	1000	0.253	275	315
2X150	1.4	2.2	32.6	1250	0.206	315	350
2X185	1.6	2.3	36.0	1540	0.164	365	395
