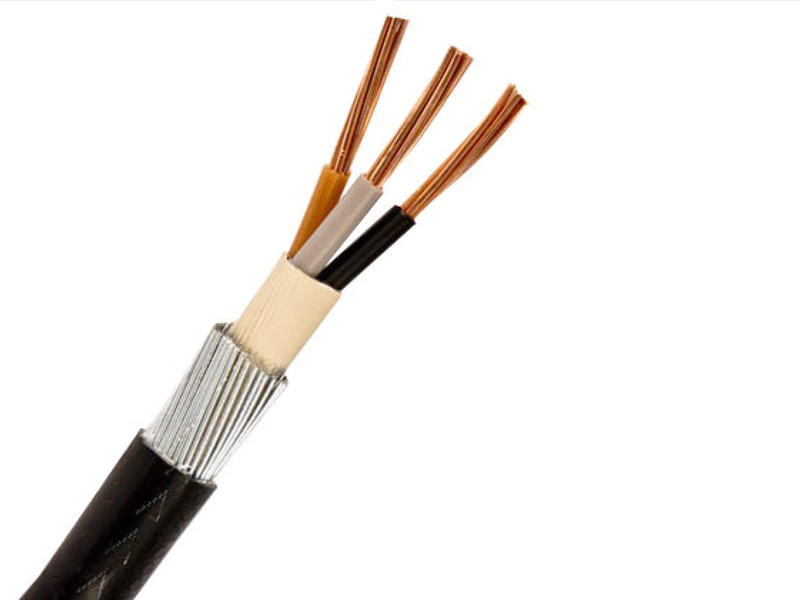

3 Core Armoured Cable Copper XLPE PVC SWA 0.6/1kV
Voltage Rating: 600/1000 Volts,
Conductor: soft annealed copper
Insulation: Cross Linked Poly Ethylene (XLPE)
Armour: Steel Wire Armoured
Oversheath: PVC
Email: manager@hdcable.com.cn
| Conductor | Plain cicrcular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2 |
| Insulation | XLPE (cross-linked polyethylene), rated at 90°C |
| Bedding | PVC (Polyvinyl Chloride) |
| Armour | SWA (Galvanized Steel Wire Armour) |
| Sheath | PVC (Polyvinyl Chloride) |
| Rated Voltage | 600/1000V |
| STANDARD | IEC 60502-1, BS 5467 and BS 6346 |
| APPLICATION | Distribution networks, Industrial use |
| CHEMICAL PERFORMANCE | Chemical & Oil resistance: Good |
| MECHANICAL PERFORMANCE | Minimum bending raduis: x15cable diameter (unarmoured) Minimum bending raduis: x20 cable diameter (armoured) |
| FIRE PERFORMANCE | Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15% |
| TERMINAL PERFORMANCE | Maximum service temperature: 90°C Maximum short-circuit temperature: 150°C(max. 5s) Minimum service temperature: -40°C |
| No. of Core x Nominal Section( mm2 ) | Insulation Thickness( mm ) | Approx. Diameter( mm ) | SWA Diamete( mm ) | Approx. Overall Diameter( mm ) | Calculated Cable Weight( kg/km ) | Max. DC Resistance at 20(Ω/ km ) | Clipped On perf. cable Direct ( A ) | tray or free air( A ) | Voltage Drop( mV/A/m ) |
| 3 x 1.5 | 0.7 | 8 | 0.8 | 13.2 | 344 | 12.1 | 23 | 25 | 27 |
| 3 x 2.5 | 0.7 | 8.9 | 0.8 | 14.1 | 400 | 7.41 | 31 | 33 | 16 |
| 3 x 4 | 0.7 | 10 | 0.8 | 15.2 | 476 | 4.61 | 42 | 44 | 10 |
| 3 x 6 | 0.7 | 11.1 | 0.8 | 17.2 | 720 | 3.08 | 53 | 56 | 6.8 |
| 3 x 10 | 0.7 | 12.8 | 1.25 | 18.9 | 905 | 1.83 | 73 | 78 | 4 |
| 3 x 16 | 0.7 | 14.7 | 1.25 | 20.8 | 1152 | 1.15 | 94 | 99 | 2.5 |
| 3 x 25 | 0.9 | 18 | 1.6 | 24.8 | 1735 | 0.73 | 124 | 131 | 1.65 |
| 3 x 35 | 0.9 | 20.4 | 1.6 | 27.2 | 2137 | 0.52 | 154 | 162 | 1.15 |
| 3 x 50 | 1 | 23.6 | 1.6 | 30.7 | 2740 | 0.39 | 187 | 197 | 0.87 |
| 3 x 70 | 1.1 | 27.5 | 2 | 35.7 | 3849 | 0.27 | 238 | 251 | 0.6 |
| 3 x 95 | 1.1 | 30.9 | 2 | 39.4 | 4776 | 0.19 | 289 | 304 | 0.45 |
| 3 x 120 | 1.2 | 34.4 | 2 | 43.1 | 5719 | 0.15 | 335 | 353 | 0.37 |
| 3 x 150 | 1.4 | 38.7 | 2.5 | 48.7 | 7443 | 0.12 | 386 | 406 | 0.3 |
| 3 x 185 | 1.6 | 42.8 | 2.5 | 53.1 | 8785 | 0.1 | 441 | 463 | 0.26 |
| 3 x 240 | 1.7 | 47.9 | 2.5 | 58.7 | 10773 | 0.08 | 520 | 546 | 0.21 |
| 3 x 300 | 1.8 | 53.1 | 2.5 | 64.2 | 12915 | 0.06 | 599 | 628 | 0.19 |
| 3 x 400 | 2 | 60.7 | 3.15 | 73.6 | 17504 | 0.05 | 673 | 728 | 0.17 |
