3 Cores XLPE Insulated PVC Sheathed Aluminum Cable Unarmoured 0.6/1kV

Cable Aluminum AL/XLPE/PVC 3 Cores

Conductor: Aluminum

Insulation: XLPE X-90

Sheath: PVC

Voltage: 0.6/1kV

Number of cores: 3 Cores

Package : Export wooden drum & iron wooden drum or as customer require

Email: manager@hdcable.com.cn

Send message Whatsapp

Share with:

APPLICATION STANDARDS CONSTRUCTION PARAMETER

Cable Application

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

STANDARDS :

Cable Standards

IEC 60228; IEC 60502-1

CONSTRUCTION :

Cable Construction

Conductor
Aluminum conductor, circular stranded, conforming to the applicable requirements of IEC 60228.

Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.

Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC60502-1.

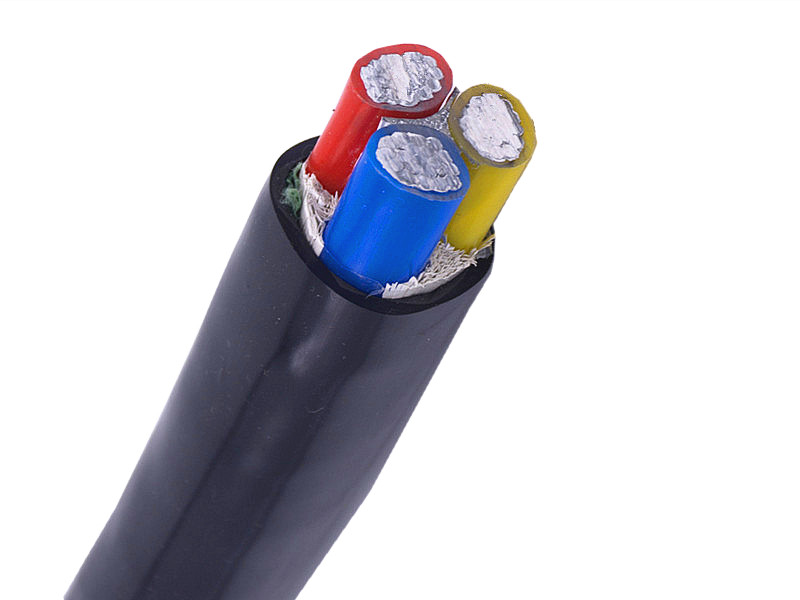

3 Cores XLPE Insulated PVC Sheathed Aluminum Cable

3 Cores XLPE Insulated PVC Sheathed Aluminum Cable

PARAMETER :

Cable Parameter

0.6/1kV-3 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
3X10	0.7	1.8	17.2	250	3.08	50	66
3X16	0.7	1.8	19.4	330	1.91	65	85
3X25	0.9	1.8	22.8	480	1.20	87	110
3X35	0.9	1.8	25.0	580	0.868	105	130
3X50	1.0	1.8	24.4	670	0.641	130	160
3X70	1.1	1.9	29.4	910	0.443	165	195
3X95	1.1	2.0	33.6	1170	0.320	205	235
3X120	1.2	2.1	35.9	1460	0.253	240	265
3X150	1.4	2.3	39.9	1820	0.206	270	300
3X185	1.6	2.4	44.1	2200	0.164	315	340
3X240	1.7	2.6	51.1	2850	0.125	375	395
3X300	1.8	2.7	56.1	3500	0.100	435	445
3X400	2.0	3.0	62.4	4500	0.0778	510	510
