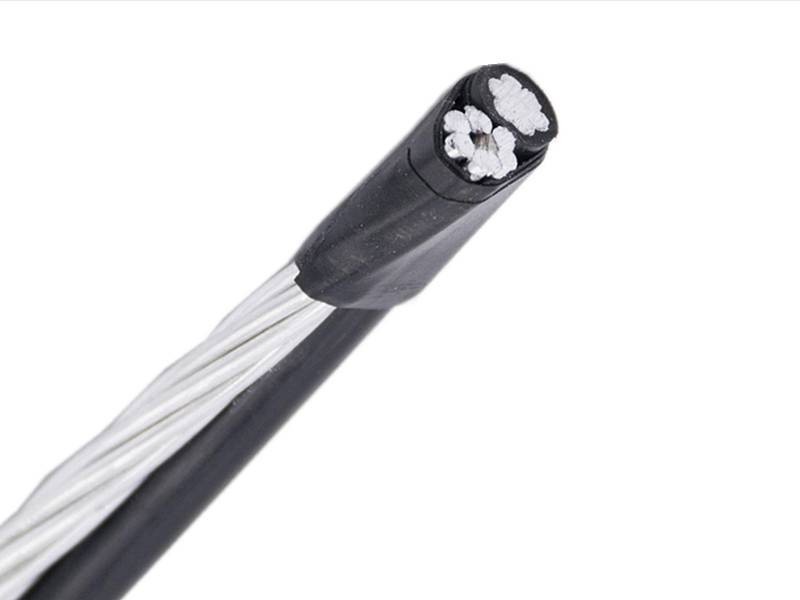

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable

1x6+6awg Setter Aluminum Conductor Duplex Overhead Service Drop Cable

Duplex Service Drop Cable 6AWG Setter #6

Code Word: Setter

Size AWG (Phase Conductors): 6

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require

Email: manager@hdcable.com.cn

Send message Whatsapp

Share with:

OVERVIEW CONSTRUCTION TECHNICAL DATA PARAMETER

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable Application

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 90°C maximum.

Also Known As:
6-6 setter aluminium overhead cables, 6-6 setter overhead aluminum wire, 6-6 setter two conductor cable, 6-6 setter 2 conductor power cable, 6-6 setter two conductor, 6-6 setter aluminum drop, 6-6 setter overhead service drop conductors, 6-6 setter overhead service conductors.

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts

CONSTRUCTION :

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable Construction

6-6 Shepherd Aluminum Conductor Duplex Overhead Service Drop Cable

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare ACSR messenger. .
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

6-6 Setter Aluminum Conductor Duplex Overhead Service Drop Cable Parameter

Size AWG: 6

Stranding: Solid

Insulation Thickness (mils): 0.045

Neutral Size AWG: 6

Weight lbs./1000ft: XLP: 75

Weight lbs./1000ft: Poly: 73

Ampacity: XLP: 85

Ampacity: Poly: 70
