AAAC-IS 398 PART 4
Shape of conductor: Stranded circular
Sectional area: 15 - 767mm2
Insulation: N/A
Standard: AAAC-IS 398 PART 4
Email: manager@hdcable.com.cn
| Name ref. | Conductor cross-section (mm2) |

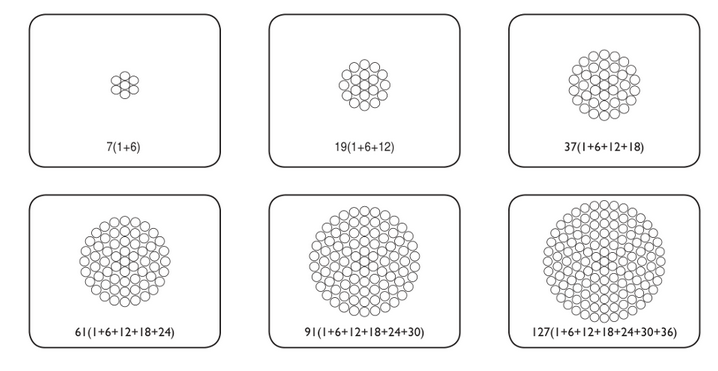

Stranding (No./mm) |
Nominal overall diameter (mm) |
Approximate weight (kg/km) |
Current Carrying Capacity at 45ºC (Amp) |
| Mole | 15 | 3/2.50 | 5.38 | 40.15 | 65 |
| Squirrel | 22 | 7/2.00 | 6.00 | 60.16 | 105 |
| Weasel | 34 | 7/2.50 | 7.50 | 94.00 | 155 |
| Rabbit | 55 | 7/3.15 | 9.45 | 149.20 | 210 |
| Raccoon | 80 | 7/3.81 | 11.43 | 218.26 | 290 |
| Dog | 100 | 7/4.26 | 12.78 | 272.86 | 325 |
| Dog-up | 125 | 19/2.89 | 14.45 | 342.51 | 360 |
| Coyote | 148 | 19/3.15 | 15.75 | 406.91 | 400 |
| Wolf | 173 | 19/3.40 | 17.0 | 474.02 | 460 |
| Wolf-up | 200 | 19/3.66 | 18.3 | 549.40 | 480 |
| Panther | 232 | 19/3.94 | 19.75 | 636.63 | 520 |
| Panther-up1 | 288 | 37/3.15 | 22.05 | 794.05 | 610 |
| Panther-up2 | 346 | 37/3.45 | 24.15 | 952.56 | 720 |
| Kundah | 400 | 37/3.71 | 25.97 | 1101.63 | 740 |
| Zebra | 465 | 37/4.00 | 28.0 | 1280.50 | 800 |
| Zebra-up | 525 | 61/3.31 | 29.79 | 1448.39 | 875 |
| Moose | 570 | 61/3.45 | 31.05 | 1573.71 | 900 |
| Morkulla | 604 | 61/3.55 | 31.95 | 1666.00 | 920 |
| Moose-up | 642 | 61/3.66 | 32.94 | 1771.36 | 940 |
| Morkulla-up | 695 | 61/3.81 | 34.29 | 1919.13 | 960 |
| Bersimis | 767 | 61/4.00 | 36.0 | 2115.54 | 1000 |
