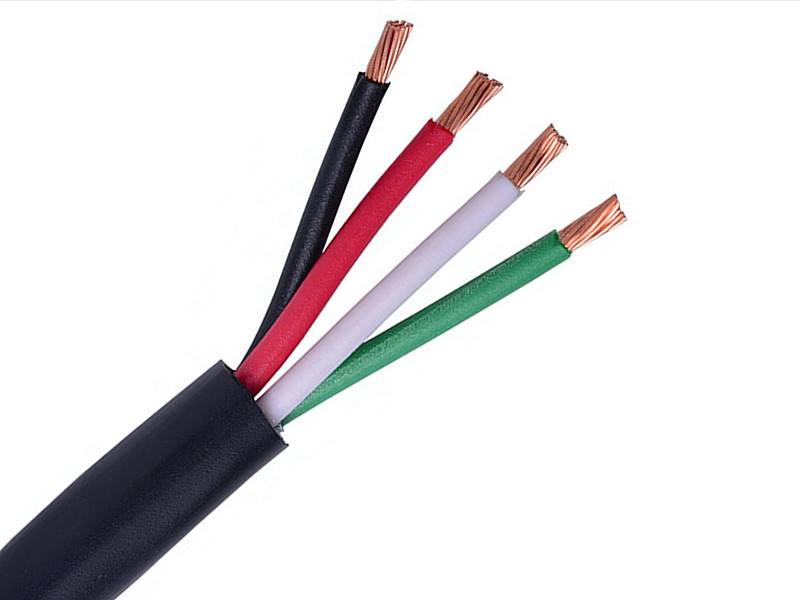

0.6/1kV PVC Insulated PVC Sheathed Cabtyre Cable
Conductor: Stranded, composite annealed copper stranded wire (Class 5)
Insulation: PVC
Sheath: PVC
Voltage: 0.6/1kV
Number of cores: Multi Core
Package: Export wooden drum & iron wooden drum or as customer require
Email: manager@hdcable.com.cn
– Conductor : Stranded, composite annealed copper stranded wire (CLASS 5)
– Insulator : PVC
– Sheath : PVC
|
Number of inner wires |
Color |
|
2 inner wires |
Black,White |
|
3 inner wires |
Black,White,Red or Black,White,Green |
|
4 inner wires |
Black,White,Red,Green |
| Conductor | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter |
Max. Conductor Resistance at 20℃ |
Test Voltage |
Approx. Weight |
|||
| Nominal Sectional Area |
Number & Diameter of Wire |
Outer Diameter |
|||||||
| With plating | Without plating | ||||||||
| mm2 | No./mm | mm | mm | mm | mm | Ω/km | kV | kg/km | |
| 1.0 | 0.21 | 1.3 | 0.8 | 1.4 | 6.0 | 19.5 | 20 | 3.5 | 50 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.4 | 6.5 | 13.3 | 13.7 | 3.5 | 60 |
| 2.5 | 0.26 | 2.1 | 0.8 | 1.4 | 7.0 | 7.98 | 8.21 | 3.5 | 80 |
| 4 | 0.31 | 2.6 | 1.0 | 1.4 | 8.0 | 4.95 | 5.09 | 3.5 | 100 |
| 6 | 0.31 | 3.6 | 1.0 | 1.4 | 9.0 | 3.30 | 3.39 | 3.5 | 130 |
| 10 | 0.41 | 4.8 | 1.0 | 1.4 | 10.0 | 1.91 | 1.95 | 3.5 | 180 |
| 16 | 0.41 | 6.0 | 1.0 | 1.4 | 11.0 | 1.21 | 1.24 | 3.5 | 240 |
| 25 | 0.41 | 7.4 | 1.2 | 1.4 | 13.0 | 0.780 | 0.795 | 3.5 | 350 |
| 35 | 0.41 | 8.7 | 1.2 | 1.4 | 14.5 | 0.554 | 0.565 | 3.5 | 450 |
| 50 | 0.41 | 10.4 | 1.4 | 1.4 | 16.5 | 0.386 | 0.393 | 3.5 | 610 |
| 70 | 0.51 | 12.5 | 1.4 | 1.4 | 18.5 | 0.272 | 0.277 | 3.5 | 820 |
| 95 | 0.51 | 14.5 | 1.6 | 1.5 | 21.5 | 0.206 | 0.21 | 3.5 | 1,110 |
| 120 | 0.51 | 16.2 | 1.6 | 1.5 | 23.0 | 0.129 | 0.164 | 3.5 | 1,370 |
| 150 | 0.51 | 18.2 | 1.8 | 1.6 | 26.0 | 0.161 | 0.132 | 3.5 | 1,680 |
| 185 | 0.51 | 20.2 | 2.0 | 1.7 | 28.0 | 0.106 | 0.108 | 3.5 | 2,070 |
| 240 | 0.51 | 23.3 | 2.2 | 1.8 | 32.0 | 0.0801 | 0.0817 | 3.5 | 2,710 |
| 300 | 0.51 | 26.0 | 2.4 | 1.9 | 35.5 | 0.0641 | 0.0654 | 3.5 | 3,360 |
| Conductor | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter |
Max. Conductor Resistance at 20℃ |
Test Voltage |
Approx. Weight |
|||
| Nominal Sectional Area |
Number & Diameter of Wire |
Outer Diameter |
|||||||
| With plating | Without plating | ||||||||
| mm2 | No./mm | mm | mm | mm | mm | Ω/km | kV | kg/km | |
| 1.0 | 0.21 | 1.3 | 0.8 | 1.8 | 10.0 | 19.5 | 20.0 | 3.5 | 120 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.8 | 10.5 | 13.3 | 13.7 | 3.5 | 130 |
| 2.5 | 0.26 | 2.1 | 0.8 | 1.8 | 11.5 | 7.98 | 8.21 | 3.5 | 160 |
| 4 | 0.31 | 2.6 | 1.0 | 1.8 | 13.5 | 4.95 | 5.09 | 3.5 | 220 |
| 6 | 0.31 | 3.6 | 1.0 | 1.8 | 15.5 | 3.30 | 3.39 | 3.5 | 290 |
| 10 | 0.41 | 4.8 | 1.0 | 1.8 | 17.5 | 1.91 | 1.95 | 3.5 | 400 |
| 16 | 0.41 | 6.0 | 1.0 | 1.8 | 20.0 | 1.21 | 1.24 | 3.5 | 530 |
| 25 | 0.41 | 7.4 | 1.2 | 1.8 | 23.5 | 0.780 | 0.795 | 3.5 | 770 |
| 35 | 0.41 | 8.7 | 1.2 | 1.8 | 26.5 | 0.554 | 0.565 | 3.5 | 980 |
| 50 | 0.41 | 10.4 | 1.4 | 1.9 | 30.5 | 0.386 | 0.393 | 3.5 | 1,320 |
| 70 | 0.51 | 12.5 | 1.4 | 2.1 | 35.5 | 0.272 | 0.277 | 3.5 | 1,800 |
| 95 | 0.51 | 14.5 | 1.6 | 2.2 | 40.5 | 0.206 | 0.210 | 3.5 | 2,430 |
|
Conductor |
Nominal |
Nominal |
Overall |
Max. |
Test |
Approx. |
|||
|
Nominal |
Number & |
Outer |
|||||||
|
With plating |
Without plating |
||||||||
|
mm2 |
No./mm |
mm |
mm |
mm |
mm |
Ω/km |
kV |
kg/km |
|
|
1.0 |
0.21 |
1.3 |
0.8 |
1.8 |
10.5 |
19.5 |
20.0 |
3.5 |
140 |
|
1.5 |
0.26 |
1.6 |
0.8 |
1.8 |
11.0 |
13.3 |
13.7 |
3.5 |
160 |
|
2.5 |
0.26 |
2.1 |
0.8 |
1.8 |
12.0 |
7.98 |
8.21 |
3.5 |
200 |
|
4 |
0.31 |
2.6 |
1.0 |
1.8 |
14.0 |
4.95 |
5.09 |
3.5 |
280 |
|
6 |
0.31 |
3.6 |
1.0 |
1.8 |
16.0 |
3.30 |
3.39 |
3.5 |
370 |
|
10 |
0.41 |
4.8 |
1.0 |
1.8 |
19.0 |
1.91 |
1.95 |
3.5 |
520 |
|
16 |
0.41 |
6.0 |
1.0 |
1.8 |
21.5 |
1.21 |
1.24 |
3.5 |
700 |
|
25 |
0.41 |
7.4 |
1.2 |
1.8 |
25.0 |
0.780 |
0.795 |
3.5 |
1,030 |
|
35 |
0.41 |
8.7 |
1.2 |
1.8 |
28.0 |
0.554 |
0.565 |
3.5 |
1,340 |
|
50 |
0.41 |
10.4 |
1.4 |
2.0 |
33.0 |
0.386 |
0.393 |
3.5 |
1,820 |
|
70 |
0.51 |
12.5 |
1.4 |
2.2 |
38.0 |
0.272 |
0.277 |
3.5 |
2,500 |
|
95 |
0.51 |
14.5 |
1.6 |
2.3 |
43.5 |
0.206 |
0.21 |
3.5 |
3,380 |
| Conductor | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Overall Diameter |
Max. Conductor Resistance at 20℃ |
Test Voltage |
Approx. Weight |
|||
| Nominal Sectional Area |
Number & Diameter of Wire |
Outer Diameter |
|||||||
| With plating | Without plating | ||||||||
| mm2 | No./mm | mm | mm | mm | mm | Ω/km | kV | kg/km | |
| 1.0 | 0.21 | 1.3 | 0.8 | 1.8 | 11.0 | 19.5 | 20.0 | 3.5 | 170 |
| 1.5 | 0.26 | 1.6 | 0.8 | 1.8 | 12.0 | 13.3 | 13.7 | 3.5 | 190 |
| 2.5 | 0.26 | 2.1 | 0.8 | 1.8 | 13.0 | 7.98 | 8.21 | 3.5 | 240 |
| 4 | 0.31 | 2.6 | 1.0 | 1.8 | 15.0 | 4.95 | 5.09 | 3.5 | 340 |
| 6 | 0.31 | 3.6 | 1.0 | 1.8 | 17.5 | 3.30 | 3.39 | 3.5 | 460 |
| 10 | 0.41 | 4.8 | 1.0 | 1.8 | 20.5 | 1.91 | 1.95 | 3.5 | 650 |
| 16 | 0.41 | 6.0 | 1.0 | 1.8 | 23.5 | 1.21 | 1.24 | 3.5 | 900 |
| 25 | 0.41 | 7.4 | 1.2 | 1.8 | 28.0 | 0.780 | 0.795 | 3.5 | 1,330 |
| 35 | 0.41 | 8.7 | 1.2 | 1.9 | 31.0 | 0.554 | 0.565 | 3.5 | 1,750 |
| 50 | 0.41 | 10.4 | 1.4 | 2.1 | 36.5 | 0.386 | 0.393 | 3.5 | 2,370 |
| 70 | 0.51 | 12.5 | 1.4 | 2.3 | 42.0 | 0.272 | 0.277 | 3.5 | 3,270 |
| 95 | 0.51 | 14.5 | 1.6 | 2.5 | 48.5 | 0.206 | 0.21 | 3.5 | 4,450 |
