Copper Clad Steel Conductor CCS Wire IEC Standard
Shape of conductor: circular and sectional
Conductor Material: Copper clad steel
Insulation: N/A
Standard: IEC
Email: manager@hdcable.com.cn

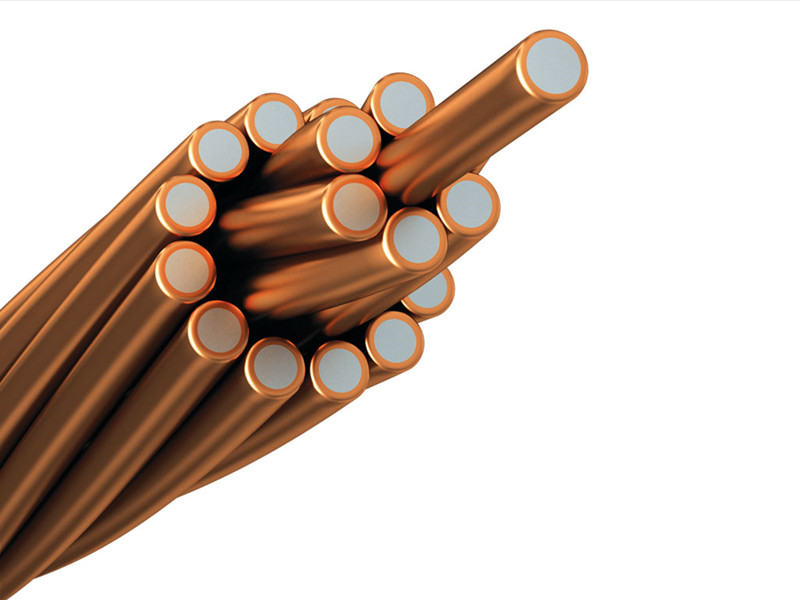

Copper Clad Steel Wire

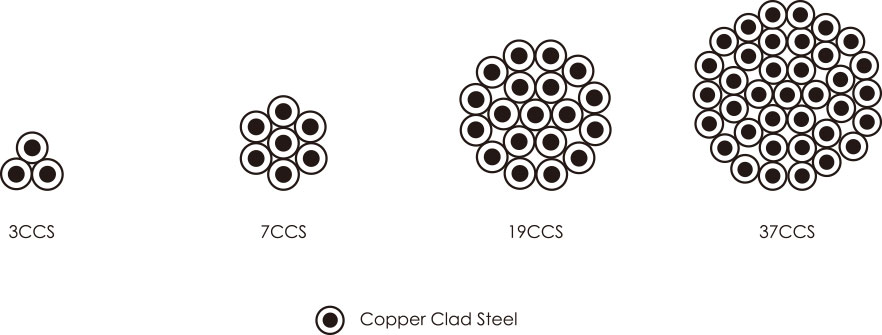

Generally, the Copper Clad Steel conductor is formed by the following construction:
|
Nominal Sectional Area mm2 |
Structure Stock Diameter mm |
Area mm2 |
Breaking Load kg |
D.C．Resistance Ω/km |
Line Quality Kg/km |
||||
|
40HS |
30HS |
30EHS |
40% |
30% |
30% |
40% |
|||
|
320 |
19/4.62 |
318.71 |
22788 |
25206 |
30350 |
0.1399 |
0.1865 |
2634.0 |
2660.8 |
|
250 |
19/4.12 |
252.71 |
18849 |
20788 |
25188 |
0.1764 |
0.2352 |
2087.9 |
2110.2 |
|
200 |
19/3.67 |
200.45 |
15599 |
17118 |
20797 |
0.2225 |
0.2966 |
1656.3 |
1674.2 |
|
160 |
19/3.26 |
158.97 |
12873 |
14079 |
17096 |
0.2805 |
0.3740 |
1313.6 |
1327.2 |
|
120 |
19/2.91 |
126.06 |
10609 |
11567 |
13884 |
0.3537 |
0.4715 |
1041.7 |
1052.6 |
|
150 |
7/5.19 |
148.06 |
10120 |
11240 |
13349 |
0.3000 |
0.4000 |
1218.7 |
1231.5 |
|
120 |
7/4.62 |
117.42 |
8396 |
9285 |
11181 |
0.3783 |
0.5043 |
966.41 |
976.53 |
|
90 |
7/4.12 |
93.097 |
6954 |
7661 |
9280 |
0.4771 |
0.6359 |
766.25 |
774.29 |
|
70 |
7/3.67 |
73.871 |
5747 |
6309 |
7661 |
0.6014 |
0.8019 |
608.06 |
614.46 |
|
60 |
7/3.26 |
58.561 |
4745 |
5189 |
6300 |
0.7586 |
1.0109 |
482.02 |
487.07 |
|
50 |
7/2.91 |
46.439 |
3908 |
4261 |
5116 |
0.9564 |
1.2750 |
382.16 |
386.18 |
|
35 |
7/2.59 |
36.826 |
3230 |
3519 |
4171 |
1.2061 |
1.6077 |
303.14 |
306.26 |
|
50 |
3/4.62 |
50.322 |
3798 |
4201 |
5380 |
0.8809 |
1.1743 |
413.41 |
417.73 |
|
40 |
3/4.12 |
39.903 |
3145 |
3465 |
4424 |
1.1106 |
1.4807 |
327.84 |
331.26 |
|
30 |
3/3.67 |
31.645 |
2600 |
2854 |
3593 |
1.4007 |
1.8672 |
259.98 |
262.66 |
|
25 |
3/3.26 |
25.097 |
2145 |
2347 |
2849 |
1.7662 |
2.3544 |
206.11 |
208.34 |
|
20 |
3/2.91 |
19.903 |
1768 |
1928 |
2326 |
2.2271 |
2.9690 |
163.55 |
165.19 |
|
15 |
3/2.59 |
15.781 |
1461 |
1592 |
1887 |
2.8082 |
3.7436 |
129.62 |
130.99 |
