XMVK Cable

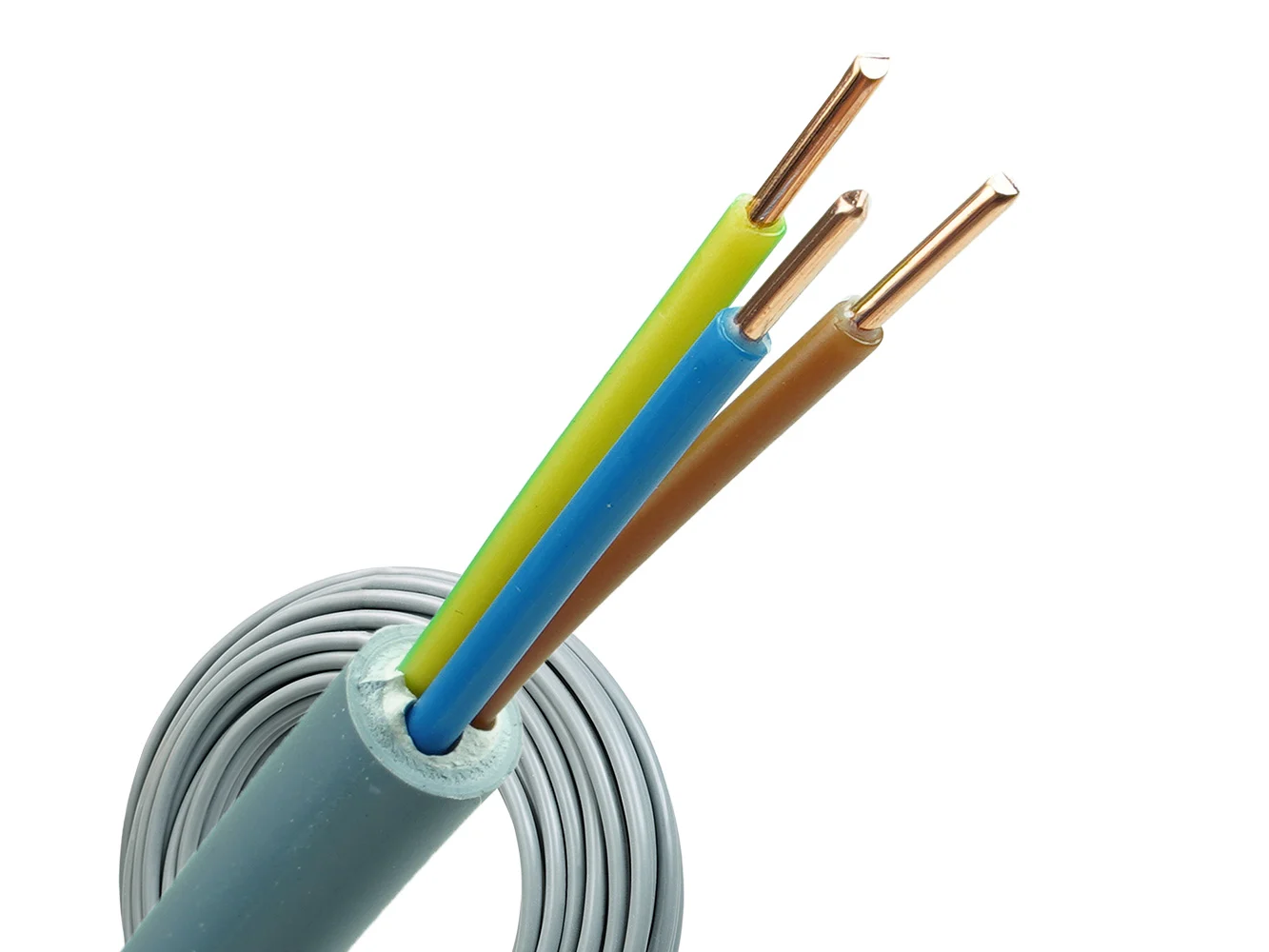

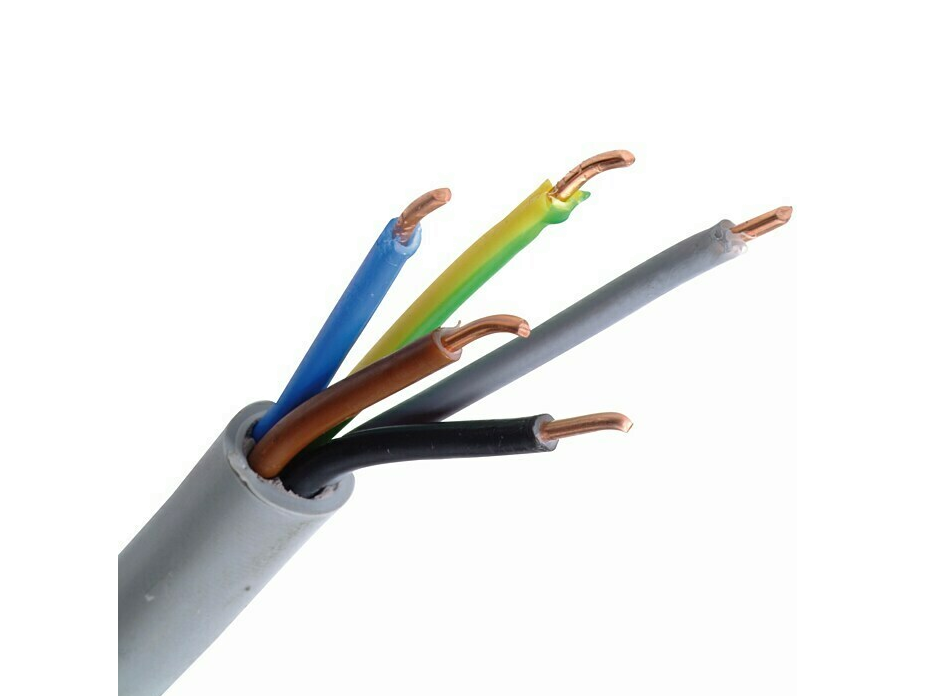

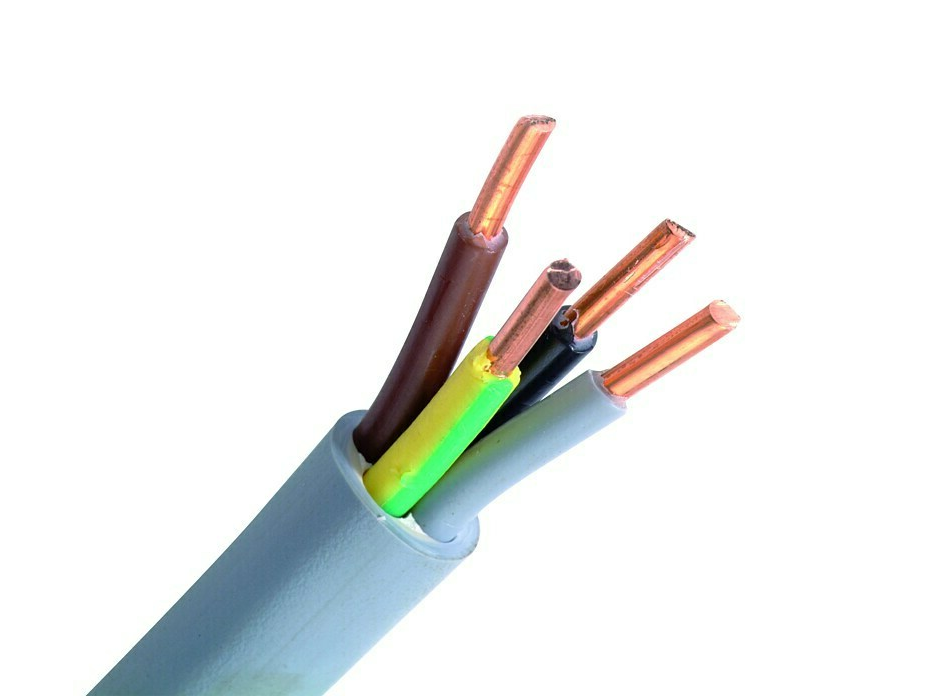

Low voltage Light installation cable XMVK Cable 3x2.5, 5x2.5mm2

Conductor: Solid copper conductor

Insulation: XLPE

Outer sheath: PVC

Min. laying temperature: -5 degrees

Flame retardant: IEC/EN 60332-1-2

Email: manager@hdcable.com.cn

Send message Whatsapp

Share with:

Construction Application Properties PARAMETER

Construction:

1. Solid copper conductor
2. XLPE insulation
core colours acc to HD 308
3. Common core covering
4. PVC outer sheath, Grey

Application :

Applications

- Connection of low power equipment and applicances in houses

Properties :

Properties

- Max. admissible conductor temperature: 90 degrees
- Service temperature: -20...+90 degrees
- Min. laying temperature: -5 degrees
- Min. admissible bending radius: 12 x D
- Flame retardant according to IEC/EN 60332-1-2

PARAMETER :

XMvK 450/750 V data sheet

Number of cores and size	Insulation thickness	Outer sheath thickness	Outer diameter approx.	Weight of cable Approx.
mm2	mm	mm	mm	kg/km
2x1,5 RE	0,6	1,4	8,6	110
2x2,5 RE	0,6	1,4	9,4	143
3x1,5 RE	0,6	1,4	9,0	128
3x2,5 RE	0,6	1,4	9,9	168
4x1,5 RE	0,6	1,4	9,7	153
4x2,5 RE	0,6	1,4	10,6	202
5x1,5 RE	0,6	1,4	10,4	178
5x2,5 RE	0,6	1,4	11,5	242
