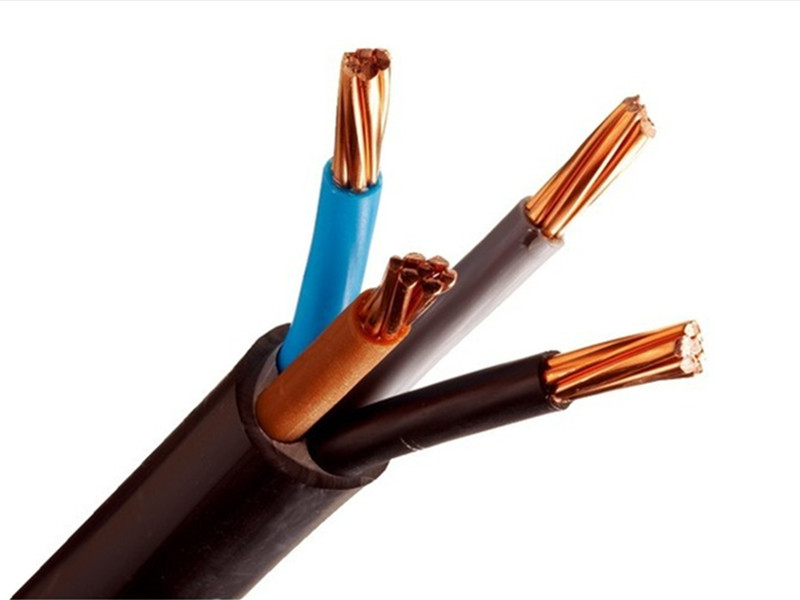

Low Voltage Copper Codnductor Cable with XLPE Insulation and PVC Jacket
Voltage Rating: 600/1000V
Standard: IEC 60502-1
Conductor: Annealed copper conductor
Insulation: Cross-linked polyethylene (XLPE)
Over sheath: PVC
Email: manager@hdcable.com.cn
Conductor 1.5mm2 to 4mm2: Class 1 solid copper conductor*
Class 2 stranded conductor available for these sizes on request

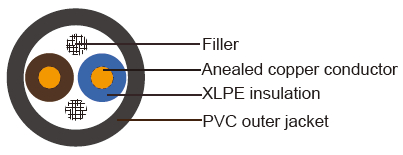

Insulation XLPE (Cross-Linked Polyethylene)
Filler: Not fibrous and not hygroscopic fill
Sheath PVC (Polyvinyl Chloride)
| 0.6/1kV-1 core copper conductor XLPE insulated PVC sheathed power cable | |||||||
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 1X1.5 | 0.7 | 1.4 | 5.5 | 48 | 12.1 | 23 | 32 |
| 1X2.5 | 0.7 | 1.4 | 5.9 | 59 | 7.41 | 31 | 42 |
| 1X4 | 0.7 | 1.4 | 6.4 | 75 | 4.61 | 41 | 55 |
| 1X6 | 0.7 | 1.4 | 6.9 | 95 | 3.08 | 52 | 69 |
| 1X10 | 0.7 | 1.4 | 8.0 | 140 | 1.83 | 71 | 92 |
| 1X16 | 0.7 | 1.4 | 9.0 | 200 | 1.15 | 92 | 115 |
| 1X25 | 0.9 | 1.4 | 10.6 | 310 | 0.727 | 120 | 150 |
| 1X35 | 0.9 | 1.4 | 11.6 | 410 | 0.524 | 150 | 180 |
| 1X50 | 1.0 | 1.4 | 13.1 | 510 | 0.387 | 180 | 215 |
| 1X70 | 1.1 | 1.4 | 15.0 | 710 | 0.268 | 230 | 265 |
| 1X95 | 1.1 | 1.5 | 16.8 | 990 | 0.193 | 285 | 320 |
| 1X120 | 1.2 | 1.5 | 18.4 | 1230 | 0.153 | 335 | 360 |
| 1X150 | 1.4 | 1.6 | 20.5 | 1450 | 0.124 | 385 | 410 |
| 1X185 | 1.6 | 1.6 | 22.6 | 1800 | 0.0991 | 450 | 460 |
| 1X240 | 1.7 | 1.7 | 25.2 | 2300 | 0.0754 | 535 | 535 |
| 1x300 | 1.8 | 1.8 | 27.8 | 2960 | 0.0601 | 620 | 605 |
| 1x400 | 2.0 | 1.9 | 31.4 | 3800 | 0.0470 | 720 | 685 |
| 1x500 | 2.2 | 2.0 | 34.9 | 4800 | 0.0366 | 835 | 775 |
| 1X630 | 2.4 | 2.2 | 39.1 | 6100 | 0.0283 | 960 | 865 |
| 0.6/1kV-2 core copper conductor XLPE insulated PVC sheathed power cable | |||||||
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 2X1.5 | 0.7 | 1.8 | 10.4 | 105 | 12.1 | 24 | 35 |
| 2X2.5 | 0.7 | 1.8 | 11.2 | 135 | 7.41 | 33 | 46 |
| 2X4 | 0.7 | 1.8 | 12.2 | 175 | 4.61 | 43 | 59 |
| 2X6 | 0.7 | 1.8 | 13.2 | 230 | 3.08 | 55 | 75 |
| 2X10 | 0.7 | 1.8 | 15.4 | 340 | 1.83 | 76 | 100 |
| 2X16 | 0.7 | 1.8 | 17.4 | 480 | 1.15 | 97 | 130 |
| 2X25 | 0.9 | 1.8 | 20.5 | 700 | 0.727 | 130 | 165 |
| 2X35 | 0.9 | 1.8 | 22.5 | 930 | 0.524 | 160 | 200 |
| 2X50 | 1.0 | 1.8 | 20.3 | 1000 | 0.387 | 195 | 240 |
| 2X70 | 1.1 | 1.8 | 23.3 | 1400 | 0.268 | 245 | 290 |
| 2X95 | 1.1 | 1.9 | 26.2 | 1950 | 0.193 | 305 | 355 |
| 2X120 | 1.2 | 2.0 | 29.4 | 2450 | 0.153 | 355 | 405 |
| 2X150 | 1.4 | 2.2 | 32.6 | 3000 | 0.124 | 405 | 450 |
| 2X185 | 1.6 | 2.3 | 36.0 | 3700 | 0.0991 | 465 | 510 |
| 0.6/1kV-3 core copper conductor XLPE insulated PVC sheathed power cable | |||||||
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 3X1.5 | 0.7 | 1.8 | 11.8 | 135 | 12.1 | 21 | 30 |
| 3X2.5 | 0.7 | 1.8 | 12.7 | 180 | 7.41 | 28 | 39 |
| 3X4 | 0.7 | 1.8 | 13.8 | 225 | 4.61 | 37 | 51 |
| 3X6 | 0.7 | 1.8 | 14.9 | 300 | 3.08 | 47 | 64 |
| 3X10 | 0.7 | 1.8 | 17.2 | 430 | 1.83 | 65 | 86 |
| 3X16 | 0.7 | 1.8 | 19.4 | 630 | 1.15 | 84 | 110 |
| 3X25 | 0.9 | 1.8 | 22.8 | 940 | 0.727 | 110 | 140 |
| 3X35 | 0.9 | 1.8 | 25.0 | 1250 | 0.524 | 135 | 170 |
| 3X50 | 1.0 | 1.8 | 24.4 | 1500 | 0.387 | 170 | 205 |
| 3X70 | 1.1 | 1.9 | 29.4 | 2140 | 0.268 | 215 | 250 |
| 3X95 | 1.1 | 2.0 | 33.6 | 2960 | 0.193 | 265 | 300 |
| 3X120 | 1.2 | 2.1 | 35.9 | 3760 | 0.153 | 310 | 345 |
| 3X150 | 1.4 | 2.3 | 39.9 | 4420 | 0.124 | 350 | 385 |
| 3X185 | 1.6 | 2.4 | 44.1 | 5950 | 0.0991 | 405 | 435 |
| 3X240 | 1.7 | 2.6 | 51.1 | 7100 | 0.0754 | 480 | 500 |
| 3X300 | 1.8 | 2.7 | 56.1 | 9000 | 0.0601 | 555 | 565 |
| 3X400 | 2.0 | 3.0 | 62.4 | 10000 | 0.0470 | 640 | 640 |
| 0.6/1kV-4 core copper conductor XLPE insulated PVC sheathed power cable | |||||||
| No. of cores and nominal cross section | Thickness of Insulation | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air(A) | In Ground(A) |
| 4X1.5 | 0.7 | 1.8 | 12.6 | 160 | 12.1 | 21 | 30 |
| 4X2.5 | 0.7 | 1.8 | 13.6 | 210 | 7.41 | 28 | 39 |
| 4X4 | 0.7 | 1.8 | 14.8 | 280 | 4.61 | 37 | 51 |
| 4X6 | 0.7 | 1.8 | 16.0 | 380 | 3.08 | 47 | 64 |
| 4X10 | 0.7 | 1.8 | 18.6 | 530 | 1.83 | 65 | 86 |
| 4X16 | 0.7 | 1.8 | 21.0 | 800 | 1.15 | 84 | 110 |
| 4X25 | 0.9 | 1.8 | 24.9 | 1240 | 0.727 | 110 | 140 |
| 4X35 | 0.9 | 1.8 | 28.3 | 1600 | 0.524 | 135 | 170 |
| 4X50 | 1.0 | 1.8 | 28.4 | 2000 | 0.387 | 170 | 205 |
| 4X70 | 1.1 | 2.0 | 33.1 | 2800 | 0.268 | 215 | 250 |
| 4X95 | 1.1 | 2.1 | 37.1 | 4000 | 0.193 | 265 | 300 |
| 4X120 | 1.2 | 2.2 | 40.8 | 5000 | 0.153 | 310 | 345 |
| 4X150 | 1.4 | 2.4 | 45.2 | 6100 | 0.124 | 350 | 385 |
| 4X185 | 1.6 | 2.6 | 52.1 | 7600 | 0.0991 | 405 | 435 |
| 4X240 | 1.7 | 2.8 | 57.8 | 9500 | 0.0754 | 480 | 500 |
| 4X300 | 1.8 | 3.0 | 63.5 | 12000 | 0.0601 | 555 | 565 |
| 4X400 | 2.0 | 3.3 | 70.9 | 16000 | 0.0470 | 640 | 640 |
