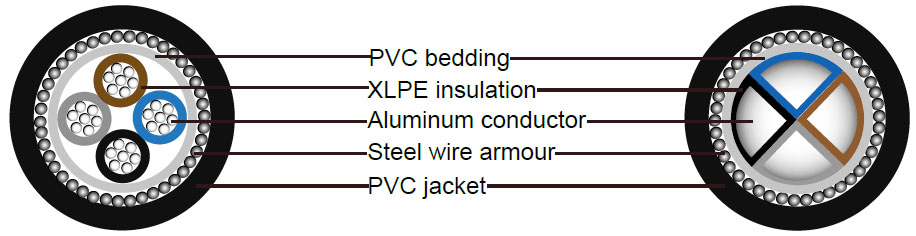

LXRV Cable AL/XLPE/SWA/PVC Steel Wire Aluminum Armoured Cable
Voltage Rating: 600/1000 Volts
Conductor: Aluminium
Insulation: Cross Linked Poly Ethylene (XLPE)
Armour: Steel Wire Armoured
Oversheath: PVC
Email: manager@hdcable.com.cn
Cable for power supply, for rated voltage up to 0,6/lkV. Suitable for outdoor fixed installations when it is necessary to protect the cable against mechanical aggression or against rodents threat. Can be laid in free air, installed in ducts or directly buried.
Excellent mechanical protection during laying, installation and service.
Conductor
Aluminium: stranded class 2, circular or sector shaped.
| Number of Conductor |
2 | 3 | 4 | 5 | |
| Insulation colouring (HD 308.S2) |
With earth conductor |
GNYE-BU-BN |
GNYE-BN-BK-GY |
GNYE-BU-BN-BK-GY |
|
| Without earth conductor |
BU-BN |
BN-BK-GY |
BU-BN-BK-GY |
BU-BN-BK-GY-BK |
|
| Working voltage: | 600/1000 volts |
| Test voltage | 3,5 kV a.c. 5 minutes |
| Working temperature: | -15º C to +90º C |
| Short circuit temperature: | +250º C |
| Flame retardant: | IEC 60332-1 |
| Minimum bending radius: | 10 x Ø |
| Insulation resistance: | 20 MΩ x km |
