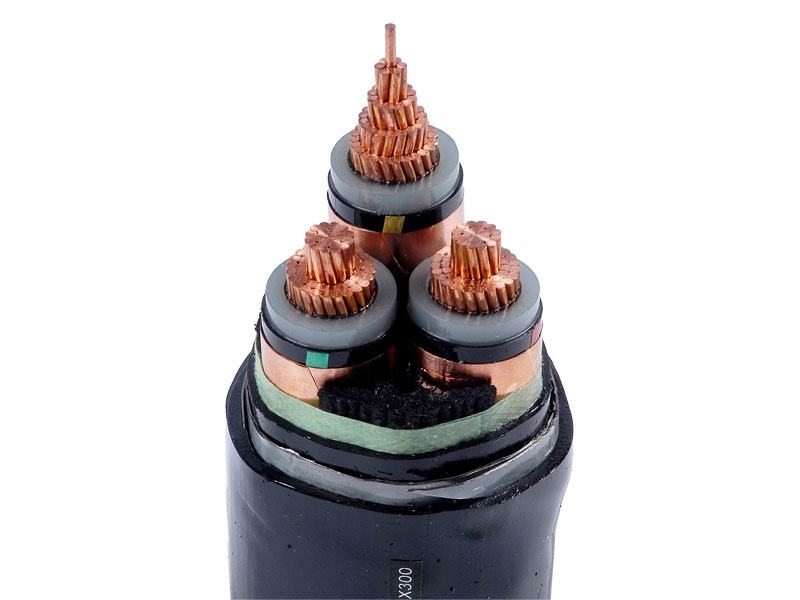

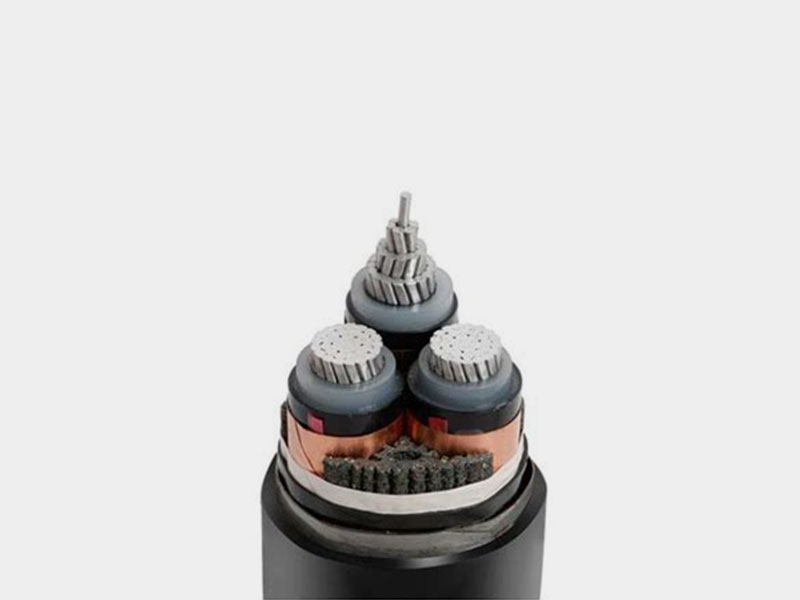

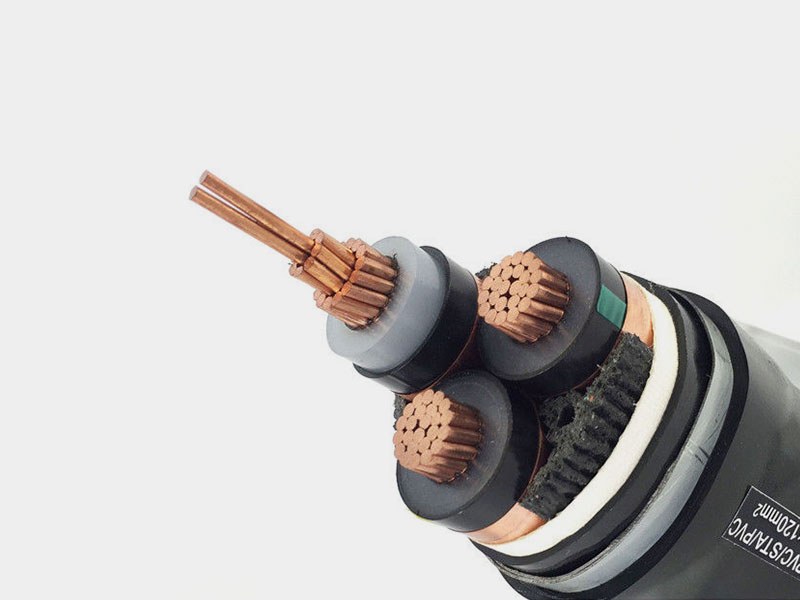

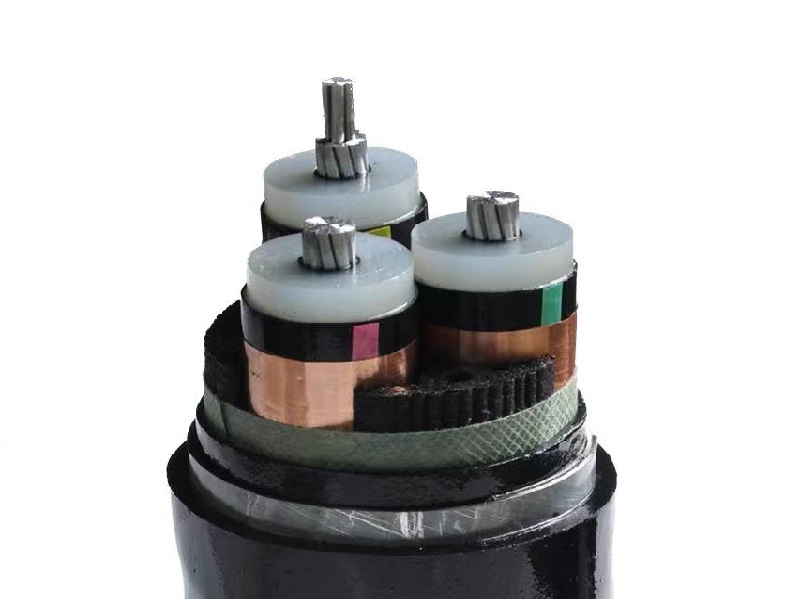

Three Core 6/10KV (Um=12KV) Armoured cable
Voltage: 6/10kV
Conductor: Copper or Aluminum
Operating Temperature: up to 90°C
Short Circuit Temperature: 250°C
Bending Radius: 15 x OD
Email: manager@hdcable.com.cn
XLPE(Cross linked polyethylene) insulated cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties.
GB/12706-2008, IEC60502,IEC 60228,IEC60332 BS 5467,BS 6622 , IS 1554 , IS 7098and ICEA S-66-524 etc.
Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulation Screen: Extruded semi-conductive compound
Metallic Screen: copper tape or a concentric layer of copper wires
Color for core identification: Red, Yellow ,Blue tape shall be applied between insulation screen and metallic screen ( The above identifying can be changed as user requirement)
Assembly : Three screened cores are laid up together ,if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath: Extruded layer of PVC ST2 or PE , LSZH
Armour : Double of galvanized steel tape or galvanized steel wire for three core power cable , Double of aluminium tape or aluminium wire for single power cable ,
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH
|
Specification |
Outer diameter |
Nominal thickness of insulation |
Steel tape Layer×thickness |
Nominal sheath thickness |
Approx. Outer diameter of cable |
Approx. Weight of cable |
Ampacity of cable |
||||
|
Air |
Soil |
||||||||||
|
CU |
AL |
Cu |
Al |
Cu |
Al |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
kg/km |
A |
A |
A |
A |
|
3×25 |
6.0 |
3.4 |
2×0.5 |
2.4 |
45.1 |
2894.4 |
2428.0 |
132 |
103 |
135 |
105 |
|
3×35 |
7.0 |
3.4 |
2×0.5 |
2.5 |
47.5 |
3360.7 |
2707.8 |
145 |
110 |
165 |
125 |
|
3×50 |
8.4 |
3.4 |
2×0.5 |
2.6 |
50.9 |
4029.5 |
3096.8 |
170 |
130 |
190 |
150 |
|
3×70 |
10.0 |
3.4 |
2×0.5 |
2.7 |
54.5 |
4825.7 |
3519.9 |
210 |
165 |
240 |
185 |
|
3×95 |
11.5 |
3.4 |
2×0.5 |
2.8 |
58.3 |
5847.0 |
4074.9 |
265 |
200 |
285 |
220 |
|
3×120 |
13.0 |
3.4 |
2×0.5 |
2.9 |
61.8 |
6843.7 |
4605.2 |
300 |
235 |
320 |
250 |
|
3×150 |
14.5 |
3.4 |
2×0.5 |
3.0 |
65.4 |
7949.6 |
5151.5 |
340 |
265 |
365 |
280 |
|
3×185 |
16.2 |
3.4 |
2×0.5 |
3.1 |
69.4 |
9260.7 |
5809.8 |
390 |
305 |
410 |
320 |
|
3×240 |
18.4 |
3.4 |
2×0.5 |
3.3 |
74.6 |
11137.0 |
6660.0 |
455 |
355 |
480 |
375 |
|
3×300 |
20.5 |
3.4 |
2×0.5 |
3.5 |
79.6 |
13223.4 |
7627.3 |
520 |
410 |
540 |
425 |
|
3×400 |
23.5 |
3.4 |
2×0.8 |
3.8 |
88.1 |
17446.5 |
9985.0 |
600 |
475 |
610 |
485 |
|
Nominal section area (mm2) |
Copper conductor(Ω/km) |
Aluminum conductor(Ω/km) |
|
1.5 |
12.1 |
- |
|
2.5 |
7.41 |
12.1 |
|
4 |
4.61 |
7.41 |
|
6 |
3.08 |
4.61 |
|
10 |
1.83 |
3.08 |
|
16 |
1.15 |
1.91 |
|
25 |
0.727 |
1.20 |
|
35 |
0.524 |
0.868 |
|
50 |
0.387 |
0.641 |
|
70 |
0.268 |
0.443 |
|
95 |
0.193 |
0.320 |
|
120 |
0.153 |
0.253 |
|
150 |
0.124 |
0.206 |
|
185 |
0.0991 |
0.164 |
|
240 |
0.0754 |
0.125 |
|
300 |
0.0601 |
0.100 |
|
400 |
0.0470 |
0.0778 |
|
500 |
0.0366 |
0.0605 |
|
630 |
0.0283 |
0.0469 |
Max. Permissible short-circuit current for conductor (reference value)
|
Nominal section area (mm2) |
Maximum permissible short-circuit current for conductor(1s)（KA） |
|
|
Copper conductor |
Aluminum conductor |
|
|
1.5 |
0.12 |
0.13 |
|
2.5 |
0.32 |
0.22 |
|
4 |
0.50 |
0.34 |
|
6 |
0.76 |
0.51 |
|
10 |
1.51 |
0.99 |
|
16 |
2.39 |
1.56 |
|
25 |
3.69 |
2.42 |
|
35 |
5.15 |
3.37 |
|
50 |
7.31 |
4.79 |
|
70 |
10.2 |
6.68 |
|
95 |
13.8 |
9.03 |
|
120 |
17.4 |
11.4 |
|
150 |
21.7 |
14.2 |
|
185 |
26.7 |
17.5 |
|
240 |
34.6 |
22.6 |
|
300 |
43.1 |
28.2 |
|
400 |
57.4 |
37.65 |
|
500 |
71.7 |
47.0 |
|
630 |
88.8 |
58.0 |
