U-1000 RVFV XAV Cable Application

These U-1000 RVFV cables are suitable for direct burial without additional protection or for installation on cable trays or in ducts where mechanical protection is necessary

U-1000 RVFV XAV Cable Standard:

NF C 32-322

Flame Retardant according to NF C 32-070 C2, IEC 60332-1-2

CONSTRUCTION :

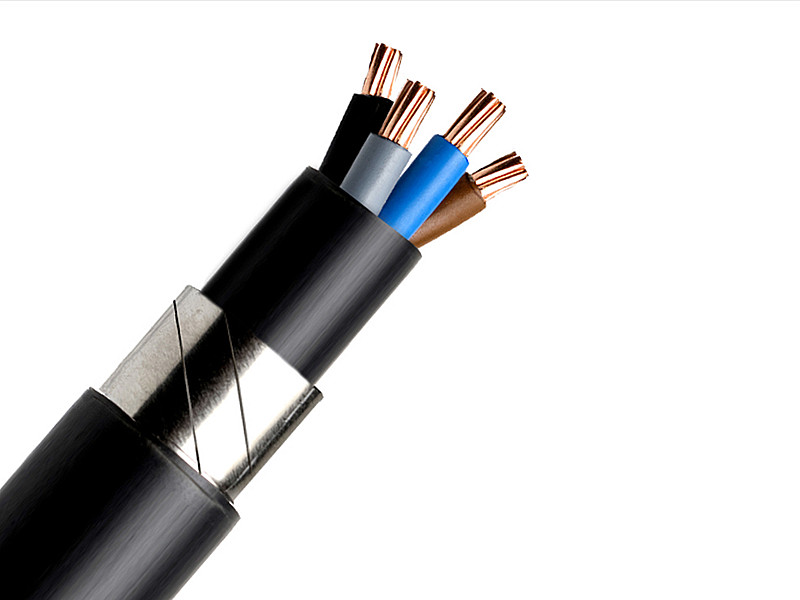

U-1000 RVFV XAV Cable Construction

Conductor: 1.5mm² to 4mm²: Class 1 solid copper conductor
6mm² and above: Class 2 stranded copper conductor
Class 2 stranded conductor available for these sizes on request

Insulation: Cross-linked polyethylene (XLPE) insulation type XLPE according to IEC 60502-1.

Armour bedding: Black extruded PVC separation sheath.

Armour: Double steel or aluminium tape armour. Aluminium armour is used in single-core cables to avoid parasite currents that may overheat the cable. Steel tape is used in the multicore cables.

Outer sheath: Flexible PVC outer sheath, Black colour.

The standard identification of insulated conductors is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

6 or more Black numbered + Green/Yellow

CHARACTERISTICS :

U-1000 RVFV XAV Cable Characteristics

Electrical performance: Low voltage 0,6/1kV.

Thermal performance:

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance:

Flame non-propagation according to EN 60332-1 and IEC 60332-1.

Reduced halogen emission. Chlorine <15%.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance:

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Good.

UV Resistant: UNE 211605.

Installation conditions

Open Air.

Buried.

In conduit.

Other

Meter by meter marking.

PARAMETER :

U-1000 RVFV XAV Cable Parameter

CROSS SECTION MM2	INSULATION THICKNESS MM	AMOUR THICKNESS MM	MINIMUM SHEATH THICKNESS MM	MAXIMUM OVERALL DIAMETER MM	APPROX CABLE WEIGHT KG/KM
2x1.5	0.7	0.2	1.3	11.5	230
2x2.5	0.7	0.2	1.3	12.5	275
2x4	0.7	0.2	1.4	13.5	330
2x6	0.7	0.2	1.4	15.5	430
2x10	0.7	0.2	1.4	16.5	555
2x16	0.7	0.2	1.5	19	770
2x25	0.9	0.2	1.6	22.5	1080
2x35	0.9	0.2	1.7	25	1390
3x1.5	0.7	0.2	1.3	12	255
3x2.5	0.7	0.2	1.3	13	305
3x4	0.7	0.2	1.4	14	380
3x6	0.7	0.2	1.4	16	500
3x10	0.7	0.2	1.5	17.5	665
3x16	0.7	0.2	1.5	20	930
3x25	0.9	0.2	1.6	24	1325
3x35	0.9	0.2	1.7	26.5	1720
3x50	0.9	0.2	1.8	29	2125
3x70	1.1	0.2	2	34.5	3080
3x95	1.1	0.5	2.1	40	4505
3x120	1.2	0.5	2.3	44.5	5540
3x150	1.4	0.5	2.4	48.5	6655
3x185	1.6	0.5	2.5	53.5	8150
3x240	1.7	0.5	2.7	61	10575
3x300	1.8	0.5	2.9	66.5	13055
3x50+35	1.0/09	0.2	1.9	33	2730
3x70+50	1.1/0.9	0.2	2	36	3440
3x95+50	1.1/1.0	0.5	2.2	42.5	5080
3x120+70	1.2/1.1	0.5	2.3	46.5	6275
3x150+70	1.4/1.1	0.5	2.5	50	7340
3x185+70	1.6/1.1	0.5	2.6	56	8975
3x240+95	1.7/1.1	0.5	2.8	62.5	11435
4x1.5	0.7	0.2	1.3	13	290
4x2.5	0.7	0.2	1.4	14	355
4x4	0.7	0.2	1.4	15	440
4x6	0.7	0.2	1.4	17	585
4x10	0.7	0.2	1.5	19	800
4x16	0.7	0.2	1.6	22	1120
4x25	0.9	0.2	1.7	26	1650
4x35	0.9	0.2	1.8	29	2135
4x50	1	0.2	1.9	32.5	2745
4x70	1.1	0.5	2.1	39	4295
4x95	1.1	0.5	2.3	44.5	5660
4x120	1.2	0.5	2.4	48.5	6880
4x150	1.4	0.5	2.6	53	8315
4x185	1.6	0.5	2.7	60.5	10510
4x240	1.7	0.5	2.9	67	13370
4x300	1.8	0.5	3.1	73	16360
