2 cores XLPE insulated cable/wire strands circular aluminum conductor with XLPE insulation and PVC sheath. It is also referred to XLPE cable or AL/XLPE/PVC 600/1000V. The single-core insulated cables are available to make following the standard of AS 5000.1, IEC 60502, and BS7889.
-
2 Cores XLPE Insulated PVC Sheathed Aluminum Cable Unarmoured 0.6/1kV- Conductor: Aluminum
- Insulation: XLPE X-90
- Sheath: PVC
-

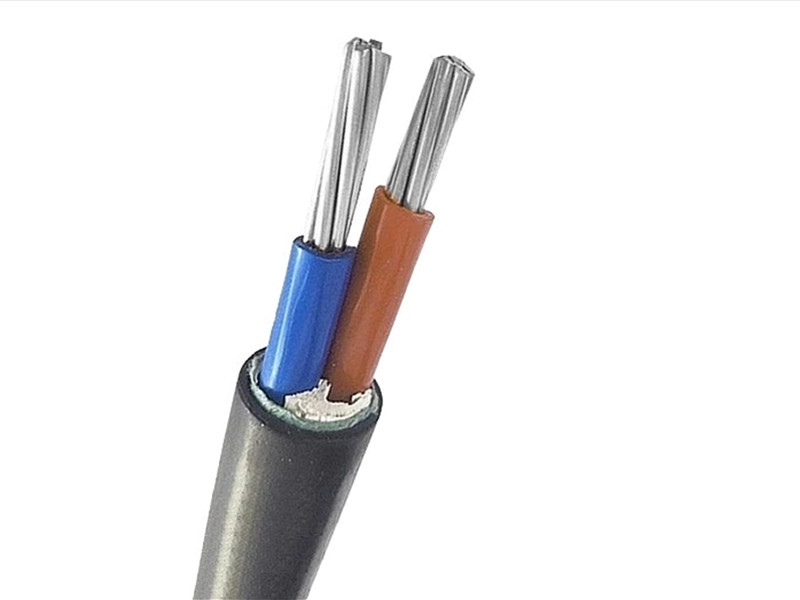

XLPE Insulated 10mm2 2 Cores Aluminum Cable 2x10mm2
- Number of Cores: 2
- Cross section area: 10mm2
- Conductor: Aluminum
-
XLPE Insulated 16mm2 2 Cores Aluminum Cable 2x16mm2
- Number of Cores: 2
- Cross section area: 16mm2
- Conductor: Aluminum
-
XLPE Insulated 25mm2 2 Cores Aluminum Cable 2x25mm2- Number of Cores: 2
- Cross section area: 25mm2
- Conductor: Aluminum
-
XLPE Insulated 35mm2 2 Cores Aluminum Cable 2x35mm2
- Number of Cores: 2
- Cross section area: 35mm2
- Conductor: Aluminum
-
XLPE Insulated 50mm2 2 Cores Aluminum Cable 2x50mm2
- Number of Cores: 2
- Cross section area: 50mm2
- Conductor: Aluminum
