Non-armored LV Power Cable maily include xlpe cable ,pvc cable ,cu/xlpe/pvc cable ,TTU cable, RV-K cable, ymvkf cable ,rvfv cable,nyy cable,n2xy cable and na2xy cable. Now I will introduce them one by one.
-
CV TFR-CV Cable- Conductor: Plain annealed copper
- Insulation: XLPE
- Sheath: Polyvinylchloride compound PVC 5V-90
-
CYKY Cable- Conductor: Copper
- Insulation: PVC
- Sheath: PVC
-
E-YY Cable- Conductor: Copper
- Insulation: PVC
- Voltage: 600/1000V
-
E-Y2Y Cable
- Conductor: Copper
- Insulation: PVC
- Sheath: PE
-
N2XY Cable- Conductor: Plain annealed copper
- Insulation: XLPE
- Sheath: Polyvinylchloride compound PVC 5V-90
-
N2xh N2xh-J N2xh-O Cable- Conductor: Plain annealed copper
- Insulation: XLPE
- Sheath: LSZH ( low smoke zero halogen)
-
N2XOH Cable Single Core Unipolares- Conductor: Plain annealed copper
- Insulation: XLPE
- Sheath: LSZH
-
N2XOH Cable Duplex- Conductor: Plain annealed copper
- Insulation: XLPE
- Sheath: LSZH
-
N2XOH Cable Triple- Conductor: Plain annealed copper
- Insulation: XLPE
- Sheath: LSZH
-
NYY Cable Single Core Unipolar 0.6/1kV
- Conductor: Plain annealed copper
- Insulation: PVC
- Sheath: PVC
-
NYY Cable Duplex 0.6/1kV
- Conductor: Plain annealed copper
- Insulation: PVC
- Sheath: PVC
-
NYY Cable Triple
- Conductor: Plain annealed copper
- Insulation: PVC
- Sheath: PVC
-
NYY Cable- Construction: Cu / Pvc / Pvc
- Standard: IEC60502-1
- Max. operating temperature: +70°C
-
NYY/YVV Cable Single Core- Construction: Cu / Pvc / Pvc
- Standard: IEC60502-1
- Max. operating temperature: +70°C
-
RZ1-K Cable- Conductor: Copper
- Insulation: XLPE
- Sheath: Halogen free polyolefin
-

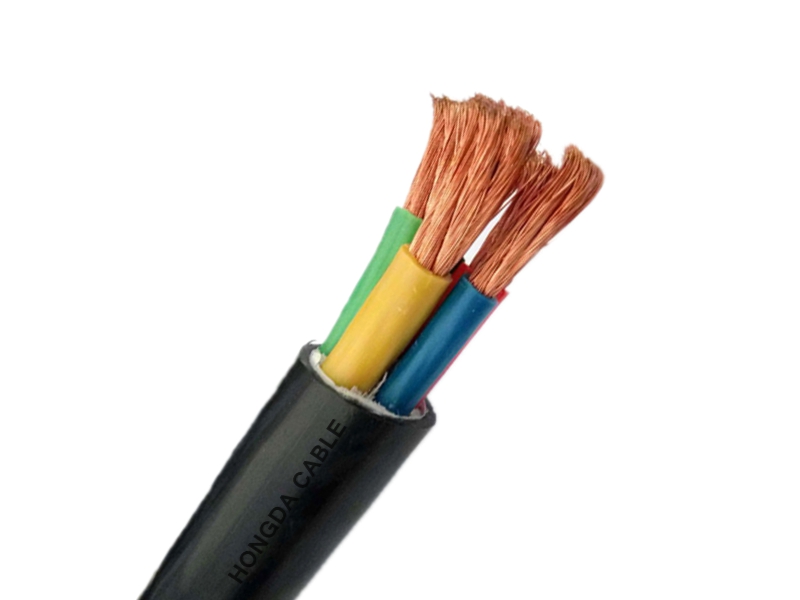

RV-K FXV Cable- Conductor: Plain annealed copper, flexible
- Insulation: XLPE
- Sheath: Polyvinylchloride compound PVC 5V-90
-
TTU Cable 2kV- Conductor: Plain annealed copper
- Insulation ： Polyethylene (PE)
- Sheath: Polyvinyl (PVC)
-
TTU Cable 600V- Conductor: Plain annealed copper
- Insulation： XLPE X-90
- Sheath: Polyvinylchloride compound PVC 5V-90
-
XV Cable- Voltage Rating: 600/1000V
- Standard: IEC 60502-1
- Conductor: Annealed copper conductor
-
XMVK Cable- Conductor: Solid copper conductor
- Insulation: XLPE
- Outer sheath: PVC
-
YMVK-mb Cable- Conductor: Stranded copper conductor
- Insulation: XLPE
- Outer sheath: PVC
